Timing Belt Inspection

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the drive belt (see DRIVE BELT REPLACEMENT ).
Remove the front upper cover.

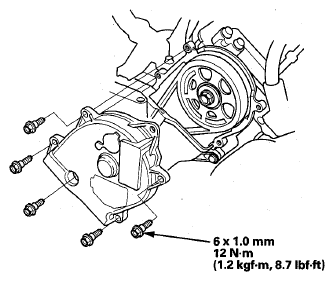

Fig 1: Front Upper Cover Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the timing belt for cracks and oil or coolant contamination. Replace the belt if it is cracked, or contaminated with oil or coolant. Wipe off any oil or solvent that gets on the belt pulleys.
NOTE: If there is any leakage, repair them before replacing the timing belt.

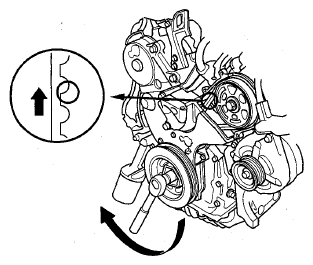

Fig 2: Inspecting Timing Belt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
