Timing Belt Adjuster Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing belt (see TIMING BELT REMOVAL  ).
  2. Remove the battery clamp bolt from the back cover.
  3. Remove the auto-tensioner (see step  6 under Timing Belt Replacement  ).
  4. Remove the bolt (A), then remove the timing belt adjuster (B) and the collar (C).

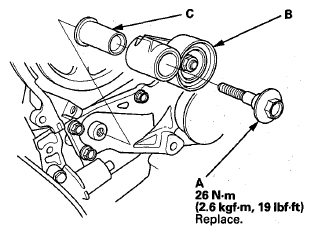

    Fig 1: Timing Belt Adjuster, Collar And Bolt With Torque Specifications
    G08052169Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the timing belt adjuster in the reverse order of removal.
  6. Install the timing belt (see TIMING BELT INSTALLATION  ).
