Cylinder Head Cover Installation: Front

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the spark plug seals for damage. If any seals are damaged, replace it.
  2. Thoroughly clean the head cover gasket and the groove of the cylinder head cover.
    NOTE: Check and if necessary, replace the head cover gasket.
  3. Install the head cover gasket (A) in the groove of the cylinder head cover (B). Make sure the head cover gasket is seated securely.
    Fig 1: Identifying Head Cover Gasket
    G08052176Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove all of the old liquid gasket from the rocker shaft holder and the cylinder head.
  5. Clean the head cover contacting surfaces with a shop towel.
  6. Apply liquid gasket (P/N 08717-0004, 08718-0003, 08718-0004, or 08718-0009) to the rocker shaft holder mating areas (A). Install the component within 5 minutes of applying the liquid gasket.
    NOTE:
    • If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.

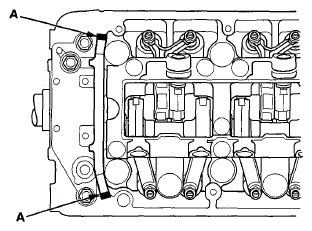

    Fig 2: Identifying Rocker Shaft Holder Mating Areas
    G08052177Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Set the spark plug seals (A) on the spark plug tubes, and install the front cylinder head cover (B).

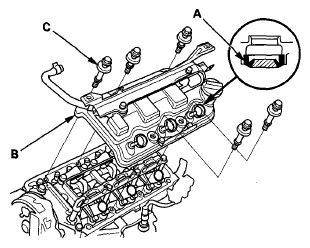

    Fig 3: Identifying Spark Plug Seals, Front Cylinder Head Cover And Cover Washers
    G08052178Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Inspect the spark plug seals for damage.
  9. Inspect the cover washers (C). Replace any washer that is damaged or deteriorated.
  10. Tighten the bolts in three steps. In the final step torque the bolts, in sequence, 12 N.m (1.2 kgf.m, 8.9 lbf.ft).
    NOTE:
    • Wait at least 30 minutes before filling the engine with oil.
    • Do not run the engine for at least 3 hours after installing the cylinder head cover.

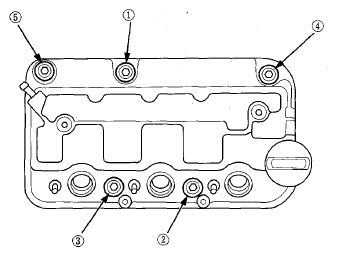

    Fig 4: Identifying Cylinder Head Cover Bolt Torque Sequence
    G08052179Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install the harness holder (A) to the bracket.

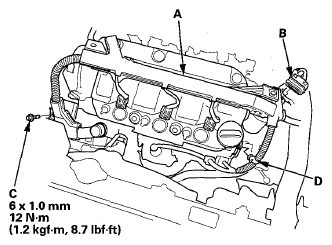

    Fig 5: Harness Holder And Related Replacement Components With Torque Specifications
    G08052180Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Connect the EGR valve connector (B) and install the harness holder mounting bolt (C) and the harness clamp (D).
  13. Install the three ignition coils to the front cylinder head (see IGNITION COIL AND SPARK PLUG REMOVAL/INSTALLATION ).
  14. Install the intake manifold (see INSTALLATION ).
