Tensioner Pulley Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the auto-tensioner (see DRIVE BELT AUTO-TENSIONER REPLACEMENT  ).
  2. Remove the pulley bolt (A) (left-hand threads), and remove the tensioner pulley (B).

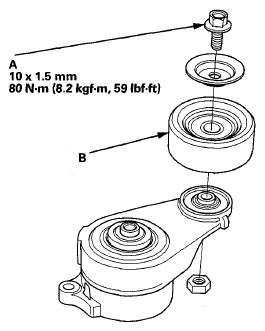

    Fig 1: Pulley Bolt (Left-Hand Threads) And Tensioner Pulley With Torque Specifications
    G08051987Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the tensioner pulley in the reverse order of removal.
