Drive Belt Inspection

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the belt for cracks and damage. If the belt is cracked or damaged, replace it (see DRIVE BELT REPLACEMENT ).
Check that the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, replace the drive belt (see DRIVE BELT REPLACEMENT ).

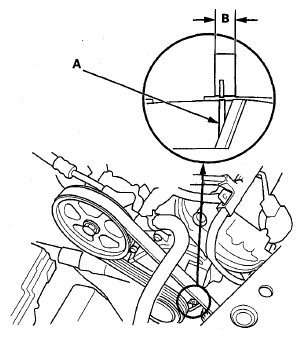

Fig 1: Checking That Auto-Tensioner Indicator (A) Is Within Standard Range (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
