Alternator Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
  2. Remove the engine cover (see step 6 under ENGINE REMOVAL ).
  3. Remove the drive belt (see DRIVE BELT REPLACEMENT  ).
  4. Remove the A/C suction line from brackets (A).

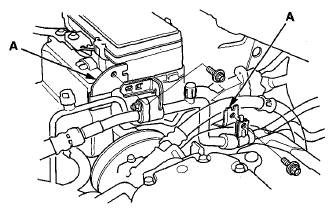

    Fig 1: Locating A/C Suction Line Brackets
    G08051988Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the coolant reservoir (A), then remove power steering fluid reservoir (B) from the bracket.
    Fig 2: Locating Coolant Reservoir And Power Steering Fluid Reservoir
    G08051989Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the harness holder (A), then disconnect the A/C compressor clutch connector (B).
    Fig 3: Locating Harness Holder And A/C Compressor Clutch Connector
    G08051990Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Disconnect the alternator connector (C) and the positive alternator cable (D) from the alternator.
  8. Remove the mounting bolt (A) and alternator bracket mounting bolt (B), then remove the alternator (C).

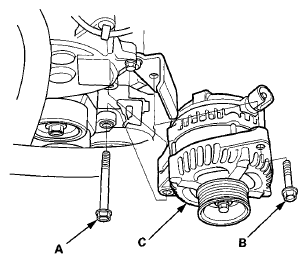

    Fig 4: Locating Alternator And Related Components
    G08051991Courtesy of AMERICAN HONDA MOTOR CO., INC.
