Alternator Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Install the alternator (A), and tighten the mounting bolt (B) and the alternator bracket mounting bolt (C).

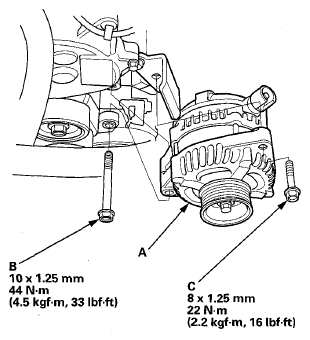

Fig 1: Locating Alternator And Related Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the alternator connector (A) and the positive alternator cable (B) to the alternator. Make sure the crimped side of the ring terminal faces away from the alternator when you connect it.

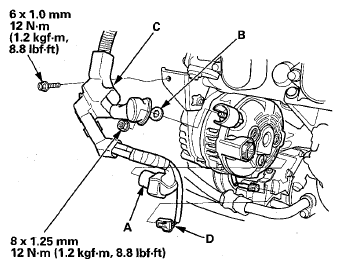

Fig 2: Locating Alternator Connector And Positive Alternator Cable With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the harness holder (C), then connect the A/C compressor clutch connector (D).
Install the power steering fluid reservoir (A) to the bracket, then install the coolant reservoir (B).

Fig 3: Locating Power Steering Fluid Reservoir And Coolant Reservoir
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the A/C suction line to the brackets (A). A

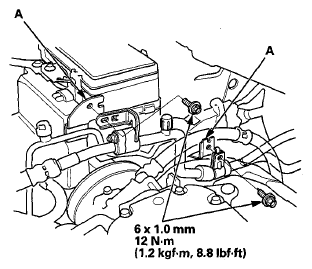

Fig 4: Locating A/C Suction Line Brackets With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the drive belt (see DRIVE BELT REPLACEMENT ).
Install the engine cover (see step 57 under ENGINE INSTALLATION ).
Do the battery terminal reconnection procedure (see RECONNECTION ).
