Fuel Tank Unit Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
Remove the second row seat (see SEAT CUSHION BLOWER MOTOR ).
Remove the access panel (A) from the floor.

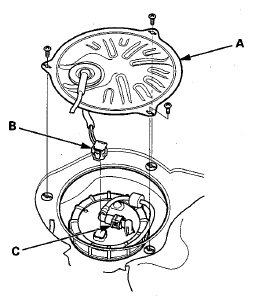

Fig 1: Identifying Quick-Connect Fitting, Fuel Tank Unit 4P Connector And Access Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the fuel tank unit 4P connector (B).
Disconnect the quick-connect fitting (C) from the fuel tank unit.
Using the fuel sender wrench, loosen the locknut (A).

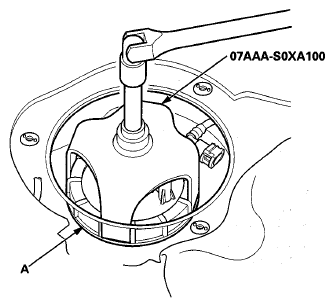

Fig 2: Loosening Locknut Using Fuel Sender Wrench
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the locknut (A), locknut plate (B), and fuel tank unit (C).

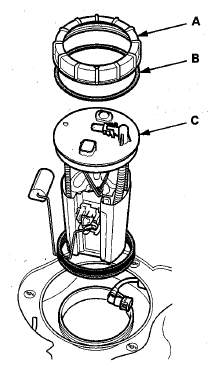

Fig 3: Identifying Fuel Tank Unit, Locknut And Locknut Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.
