Fuel Fill Pipe Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
Drain the fuel tank (see FUEL TANK DRAINING ).
Remove the fuel fill cap.
Remove the rear fender cover (see REAR INNER FENDER REPLACEMENT ).
Disconnect the fuel fill tube (A) and the quick-connect fitting (B).

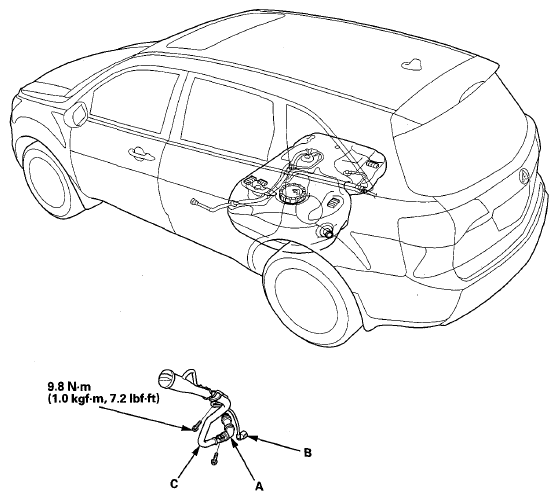

Fig 1: Identifying Fuel Fill Tube, Pipe And Quick-Connect Fitting
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the fuel fill pipe (C).
Install the parts in the reverse order of removal.
