Rear Inner Fender Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the related parts.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the rear inner fender cover (A).
1. Remove the screw (B) that secure the fender cover and the rear strake (C) from the front of the rear wheel arch.
2. Remove the screws (D, E) and the clip (F) that secure the rear bumper (G) and the fender cover from the rear of the rear wheel arch.
3. Remove the bolts (H) and the clip(s) (I) from the rear wheel arch.
4. Pull out the rear inner fender cover.
  Left

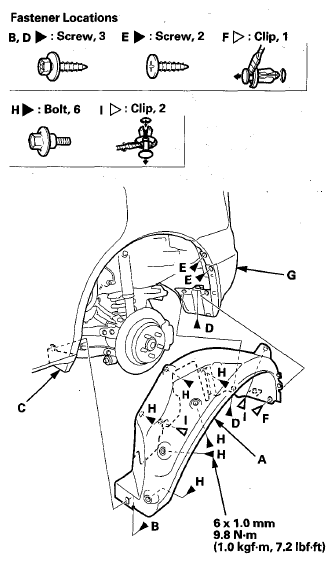

  Fig 1: Locating Rear Inner Fender Cover, Screws And Clips With Torque Specifications - Left
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

  Right

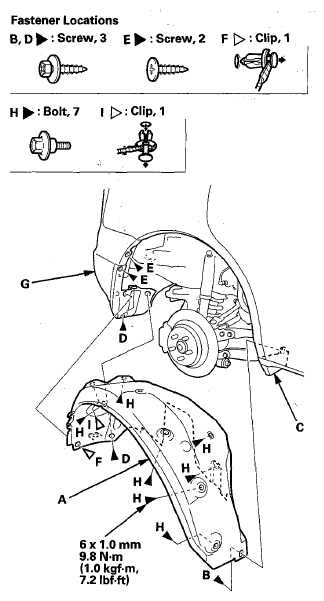

  Fig 2: Locating Rear Inner Fender Cover, Screws And Clips With Torque Specifications - Right
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the fender cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
