Special Tools Required

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear differential (see REAR DIFFERENTIAL REMOVAL  ).
  2. Remove the 40 x 55 x 7.5 mm dust seal (A) using a commercially available tool.
    NOTE: Remove the dust seal with care so you do not damage the inside surface of the side case seal surface.

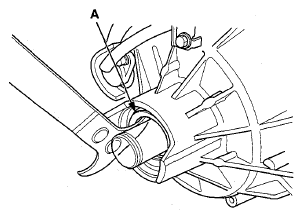

    Fig 1: Removing Dust Seal Using
    G08052811Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the thrust washer.
  4. To remove the 34.7 x 54 x 9 mm oil seal (A), install the 6 mm screw (B) (P/N 93901-16580) into the maintenance hole (C) of the oil seal as shown; the oil seal has four invisible places on the surface for maintenance (4 places, 90 degrees apart). Remove the oil seal using pliers (D) and a screw driver (E) as shown.
    NOTE: Do not thread the 6 mm screw into the oil seal more than 5 mm (0.20 in).

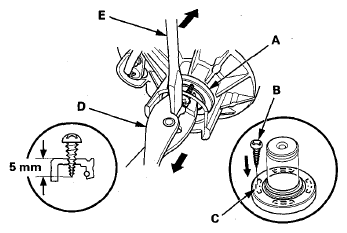

    Fig 2: Removing Oil Seal
    G08052812Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install a new 34.7 x 54 x 9 mm oil seal (A) into the rear differential side case (B) using the oil seal driver (C) and the driver handle (D).

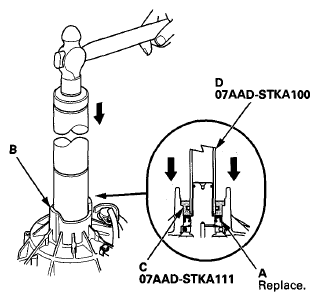

    Fig 3: Installing Oil Seal Into Rear Differential Side Case
    G08052813Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the thrust washer (A), then install a new 40 x 55 x 7.5 mm dust seal (B) using the dust seal driver (C) and the driver handle (D).

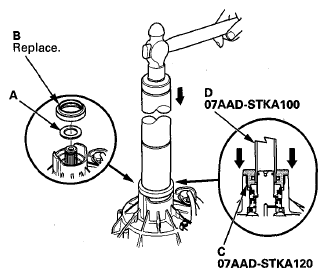

    Fig 4: Installing Thrust Washer And Dust Seal
    G08052814Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the rear differential (see REAR DIFFERENTIAL INSTALLATION  ).
