Special Tools Required

Driveshaft Remover 07AAD-S3VA000

1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
2. Drain the rear differential fluid (see REAR DIFFERENTIAL FLUID INSPECTION AND REPLACEMENT  ).
3. Remove the spare tire.
4. Remove the rear wheels.
5. Remove the muffler (A).
   Fig 1: Identifying Muffler

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Remove the right rear driveshaft (see REAR DRIVESHAFT REMOVAL ).

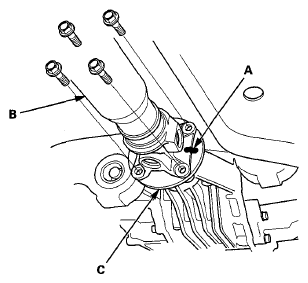

7. Make reference mark (A) across the propeller shaft (B) and the rear differential companion flange (C). Separate the propeller shaft from the rear differential.
   NOTE: Suspend the propeller shaft with an appropriate size nylon strap.
   Fig 2: Identifying Reference Mark On Propeller Shaft And Rear Differential Companion Flange With Mounting Bolts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

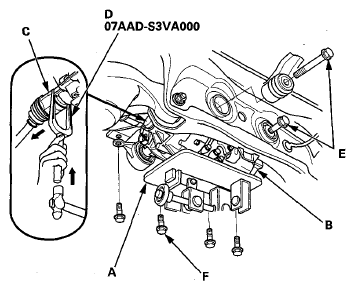

8. Place a transmission jack (A) under the rear differential (B).
   Fig 3: Disconnecting Left Rear Driveshaft Inboard Joint

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Disconnect the left rear driveshaft inboard joint (C) from the rear differential using the driveshaft remover (D) and a hammer.
10. Remove the rear differential rear mount bolts (E) and the rear differential front mounting bracket bolts (F).
11. Lower the rear differential a little on the transmission jack, then remove the left rear driveshaft inboard joint from the rear differential.
    NOTE: Make sure not to over extend the wire harness and the breather hose.

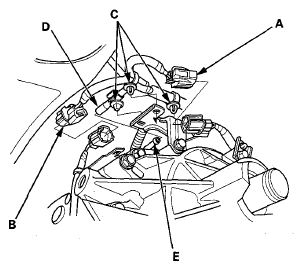

12. Disconnect the right solenoid 4P connector (A) and the rear differential fluid temperature sensor 2P connector (B), then remove the harness clips (C).
    Fig 4: Identifying Right Solenoid 4P Connector, Rear Differential Fluid Temperature Sensor 2P Connector And Harness Clips

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. Disconnect the breather hose (D) from the breather pipe (E).
14. Lower the rear differential slightly on the transmission jack.
    NOTE: Make sure not to over extend the wire harness.

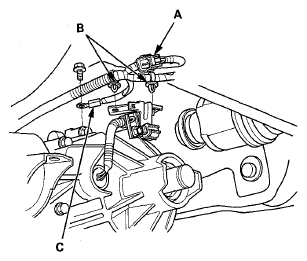

15. Disconnect the left solenoid 4P connector (A), then remove the harness clips (B).
    Fig 5: Identifying Left Solenoid 4P Connector, Harness Clips And Ground Cable

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
16. Disconnect the ground cable (C) from the rear differential.
17. Lower the rear differential on the transmission jack.

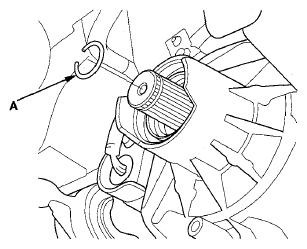

18. Remove the set ring (A) from the rear differential left side.
    Fig 6: Identifying Rear Differential Left Side Set Ring

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
