Special Tools Required

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Driver Handle, 15 x 135L 07749-0010000
Oil Seal Driver Attachment, 71.5mm 07GAD-SE00100
Snap Ring Pliers 07LGC-0010100

Install the third shaft bearing (A) in the direction shown.

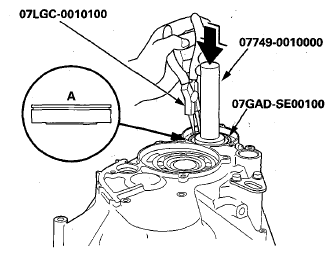

Fig 1: Expanding Snap Ring Using Snap Ring Plier
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Expand the snap ring using snap ring pliers, and insert the bearing part-way into the transmission housing using the 15 x 135 L driver handle and the 71.5 mm oil seal driver attachment.
Release the snap ring pliers, then push the bearing down into the transmission housing until the snap ring snaps in place around it.
After installing the bearing, check that the snap ring (A) is seated in the bearing and the housing groove, and that the snap ring end gap (B) is 0-7 mm (0-0.28 in).

Fig 2: Checking Snap Ring End Gap
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the reverse idler gear assembly (see REVERSE IDLER GEAR REMOVAL/INSTALLATION ).
