Shift Lever Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Install the shift lever assembly (A) on the console frame (B).

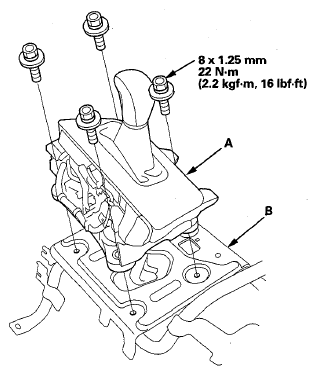

Fig 1: Locating Shift Lever Assembly And Console Frame With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Assemble the center console by installing the following:
- Center console box (see CENTER CONSOLE BOX REPLACEMENT )
- Center console beverage holder (see CENTER CONSOLE BEVERAGE HOLDER REPLACEMENT )
- Center console panel (see CENTER CONSOLE LATCH PANEL REMOVAL/INSTALLATION )
- Center console latch panel (see CENTER CONSOLE LATCH PANEL REMOVAL/INSTALLATION )
- Console armrest (see CONSOLE ARMREST REMOVAL/INSTALLATION )
Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Install the shift cable on the shift lever, and adjust the shift cable (see step 6 under Shift Cable Adjustment ).
Install the beverage holder inner case (see step 11 under CENTER CONSOLE REMOVAL/INSTALLATION
Install the passenger's center console trim (see step 5 under CENTER CONSOLE REMOVAL/INSTALLATION
