Oil Pump Overhaul: Inspection

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the EXPLODED VIEW if needed during this procedure.

Remove the screws from the pump housing, then separate the pump housing and the cover.
Check the inner rotor-to-outer rotor radial clearance between the inner rotor (A) and the outer rotor (B). If the inner rotor-to-outer rotor radial clearance exceeds the service limit, replace the oil pump assembly.
Inner Rotor-to-Outer Rotor Radial Clearance

Standard (New): 0.040-0.160 mm (0.002-0.006 in)

Service Limit: 0.20 mm (0.007 in)

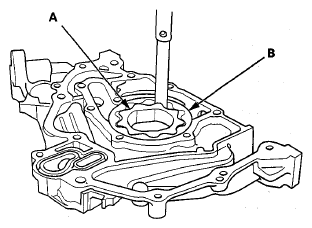

Fig 1: Checking Inner Rotor-To-Outer Rotor Radial Clearance
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the pump housing-to-rotor axial clearance between the rotors (A) and the pump housing (B). If the pump housing-to-rotor axial clearance exceeds the service limit, replace the oil pump assembly.
Pump Housing-to-Rotor Axial Clearance

Standard (New): 0.020-0.070 mm (0.001-0.002 in)

Service Limit: 0.12 mm (0.004 in)

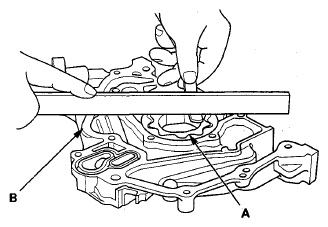

Fig 2: Checking Pump Housing-To-Rotor Axial Clearance
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the pump housing-to-outer rotor radial clearance between the outer rotor (A) and the pump housing (B). If the pump housing-to-outer rotor radial clearance exceeds the service limit, replace the oil pump assembly.
Pump Housing-to-Outer Rotor Radial Clearance

Standard (New): 0.100-0.190 mm (0.004-0.007 in)

Service Limit: 0.20 mm (0.007 in)

Fig 3: Checking Pump Housing-To-Outer Rotor Radial Clearance
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect both rotors and the pump housing for scoring or other damage. Replace the oil pump assembly, if necessary.
Apply liquid thread lock to the pump housing screws, then install the oil pump cover.
Check that the oil pump turns freely.
