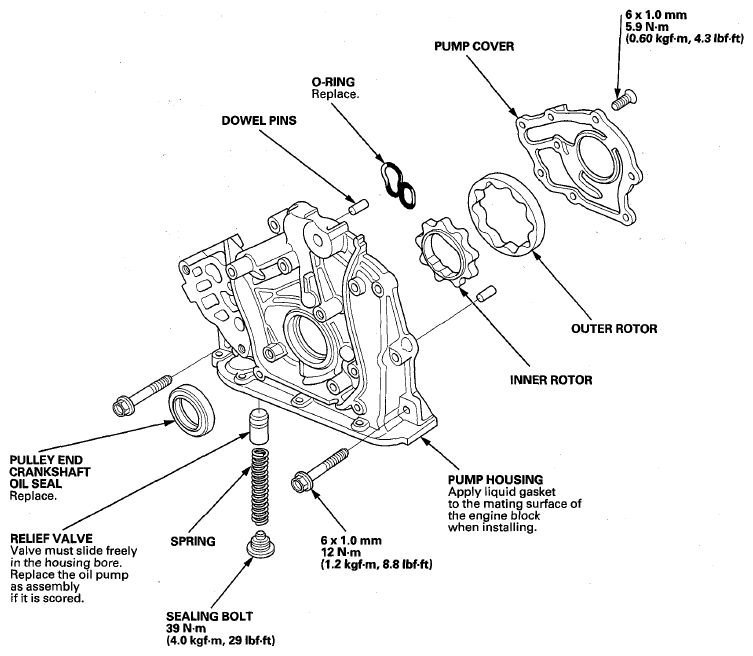

Exploded View
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Special Tools Required
- Oil Seal Driver, 64 mm 07OAD-RCAA100
- Engine Support Hanger, A and Reds AAR-T1256*
- Engine Hanger Adapter Set VSB02C000031*
*: Available through the Acura Tool and Equipment program, 888-424-6857.
