Service Information

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

The remaining engine oil life (A) is shown as a percentage on the multi-information display. To see the current engine oil life, turn the ignition switch to ON (II), then push and release the SEL/RESET button repeatedly until the engine oil life displays.

Fig 1: Multi-Information Display - Remaining Engine Oil Life
Courtesy of AMERICAN HONDA MOTOR CO., INC.
When the ignition switch is in ON (II), and the remaining engine oil life is 15 % to 6%, the remaining engine oil life and other scheduled maintenance item (s) needing service are displayed.
The Maintenance Minder message "SERVICE DUE SOON" (A) also comes on. To cancel the message, press the INFO button. The display continues to show the remaining engine oil life (B) and the message indicator (C) until it is reset.
- Complete list of maintenance main items (D) (see MAINTENANCE MAIN ITEMS ).
- Complete list of maintenance sub items (E) (see MAINTENANCE SUB ITEMS ).

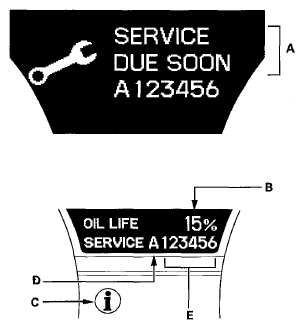

  Fig 2: Maintenance Minder Message - SERVICE DUE SOON
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
When the ignition switch is in ON (II), and the remaining engine oil life is 5 % to 1 %, the Maintenance Minder message "SERVICE DUE NOW" is displayed along with the same maintenance item code(s). If the Maintenance Minder message display is canceled, a "SERVICE" message appears.

Fig 3: Maintenance Minder Message - SERVICE DUE NOW
Courtesy of AMERICAN HONDA MOTOR CO., INC.
When the ignition switch is in ON (II), and the remaining engine oil life is 0 %, the Maintenance Minder message "SERVICE PAST DUE" is displayed along with the same maintenance item code(s).

Fig 4: Maintenance Minder Message - SERVICE PAST DUE
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the indicated maintenance is not done, the "SERVICE PAST DUE" message shows a negative distance traveled, for example "10 miles," on the display. If the negative distance traveled is between 0 and 9, the message is displayed for only a few seconds when the ignition switch is turned to ON (II). The negative distance traveled (A) remains displayed after the vehicle is driven more than 10 miles (for USA models) or 10 km (for Canada models) after 0% oil life is reached, and the display cannot be canceled. This means the indicated maintenance item(s) should have been done more than 10 miles (or 10 km) ago.

Fig 5: Maintenance Minder Message - 10 Miles SERVICE PAST DUE
Courtesy of AMERICAN HONDA MOTOR CO., INC.
