Secondary Shaft Disassembly, Inspection, and Reassembly

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the thrust needle bearings and the needle bearings for galling and rough movement.

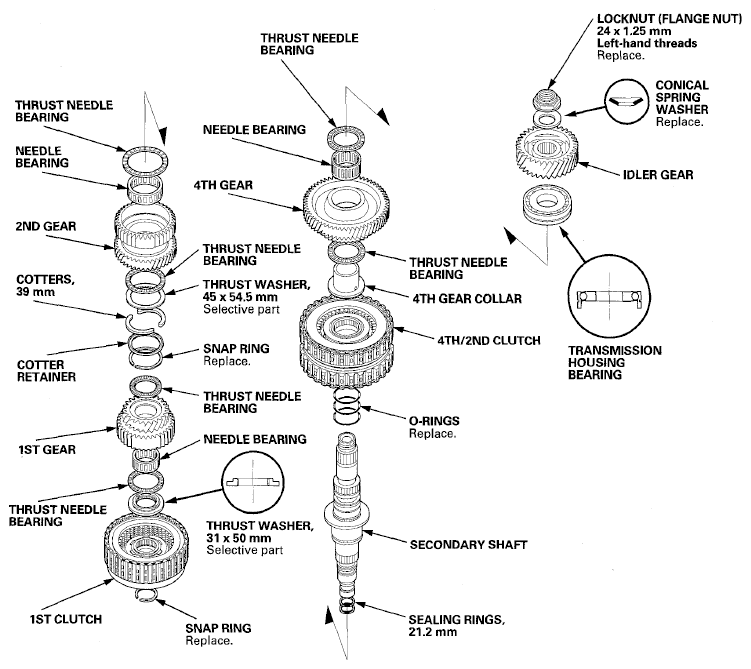

Fig 1: Exploded View Of Secondary Shaft Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the splines for excessive wear and damage.
Check the shaft bearing surface for scoring and excessive wear.
Before installing the O-rings, wrap the shaft splines with tape to prevent O-ring damage.
Lubricate all parts with ATF during assembly.
Install the conical spring washer, the idler gear, and the 31 x 50 mm thrust washer in the direction shown.
Replace the locknut and the conical spring washer with new ones when assembling the transmission. The locknut has left-hand threads.
Check the axial clearance of 1st gear (see SECONDARY SHAFT 1ST GEAR AXIAL CLEARANCE INSPECTION ) and 2nd gear (see SECONDARY SHAFT 2ND GEAR AXIAL CLEARANCE INSPECTION ).
Inspect the condition of the sealing rings. If the sealing rings are worn, distorted, or damaged, replace them (see SECONDARY SHAFT SEALING RING REPLACEMENT ).
