Secondary Shaft Sealing Ring Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

The sealing rings are synthetic resin with chamfered ends. Check the condition of the sealing rings, and replace them only if they are worn, distorted, or damaged.

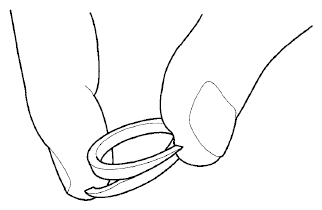

For a better fit, squeeze sealing rings together slightly before installing them.

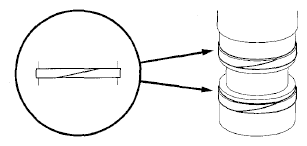

Fig 1: Identifying Sealing Rings Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply ATF to the new sealing rings, then install them on the secondary shaft.

Fig 2: Installing Sealing Rings
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After installing the sealing rings, verify the following:
- The rings are fully seated in the groove.
- The rings are not twisted.
- The chamfered ends of the rings are properly joined.
