Countershaft Disassembly, Inspection, and Reassembly

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the needle bearings for galling and rough movement.

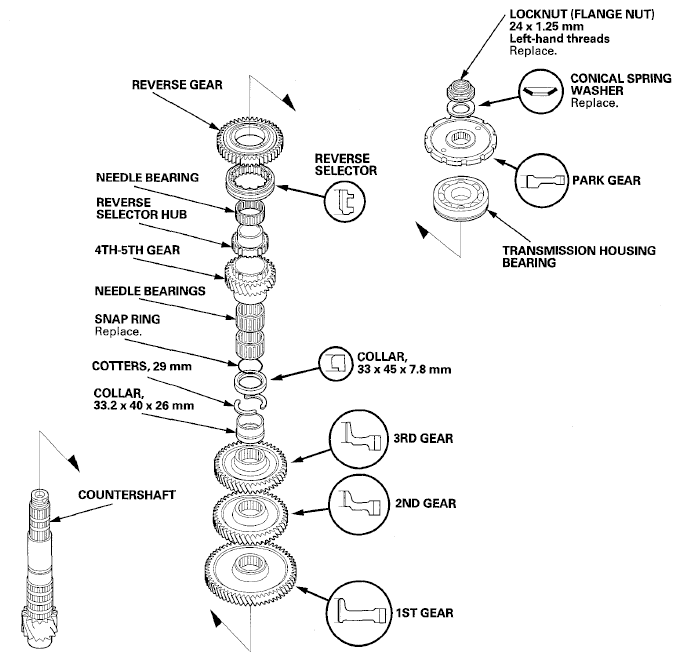

Fig 1: Exploded View Of Countershaft Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the splines for excessive wear and damage.
Check the shaft bearing surface for scoring and excessive wear.
Lubricate all parts with ATF during assembly.
Install the conical spring washer, the park gear, the reverse selector, the 33 x 45 x 7.8 mm collar, and the gears in the direction shown.
Replace the locknut and the conical spring washer with new ones when assembling the transmission. The countershaft locknut has left-hand threads.
Some reverse selector hubs are press-fitted to the countershaft; remove the hubs with a press (see COUNTERSHAFT REVERSE SELECTOR HUB REMOVAL ), and install them with the special tool and a press (see COUNTERSHAFT REVERSE SELECTOR HUB REMOVAL ).
