With Front Fog Lights

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Take care not to scratch the front bumper.
  • Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION  ).
  2. Remove the clips, and release the hooks (A), then remove the lower front bumper grille (B) from the front bumper (C).
    NOTE: To release the clips, pry up on the center pin at the notch (D).

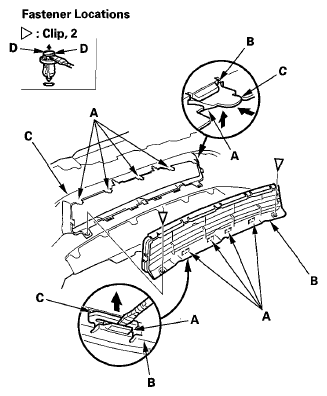

    Fig 1: Identifying Lower Front Bumper Grille & Front Bumper With Hooks
    G05959673Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the bumper grille in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Push the clips and the hooks into place securely.
