Canada Models Without Front Fog Lights

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the front bumper.
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION  ).
  2. Remove the clips and the hooks (A), then remove the lower front bumper grille cover (B) from the front bumper (C).
    NOTE: To release the clips, pry up on the center pin at the notch (D).

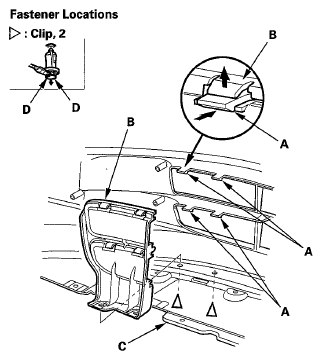

    Fig 1: Identifying Lower Front Bumper Grille Cover
    G05959674Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the cover in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, and replace them with new ones.
    • Push the clips and the hooks into place securely.
