Rear Seat Belt

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Check the rear seat belts for damage (see INSPECTION ), and replace them if necessary.

Remove these items:
- Rear door inner seal, as needed (see step 3 on TRIM REMOVAL/INSTALLATION - PILLAR AREAS )
- Tailgate weatherstrip, as needed (see TAILGATE WEATHERSTRIP REPLACEMENT )
- Cargo floor (see step 1 on TRIM REMOVAL/INSTALLATION - CARGO AREA )
- Cargo floor box, with temporary repair kit (TRK) (see step 3 on TRIM REMOVAL/INSTALLATION - CARGO AREA )
- Rear trim panel (see step 4 on TRIM REMOVAL/INSTALLATION - CARGO AREA )
- Cargo area side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA )

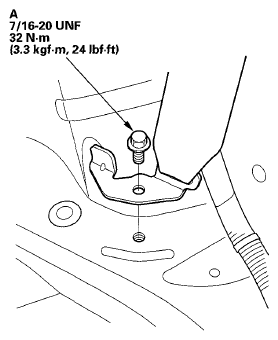

Pull the carpet back as necessary, and remove the lower anchor bolt (A).

Fig 1: Lower Anchor Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the upper anchor cap (A), and remove the upper anchor bolt (B).

Fig 2: Upper Anchor Cap & Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

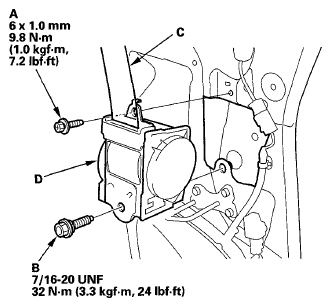

Remove the upper retractor mounting bolt (A) and the lower retractor bolt (B), then remove the rear seat belt (C) and the retractor (D).

Fig 3: Upper & Lower Retractor Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the seat belt and the retractor in the reverse order of removal, and note these items:
- Tighten the bolts by hand first, then tighten to the specified torque.
- Check that the retractor locking mechanism functions (see INSPECTION ).
- Assemble the washers and the collar on the upper anchor bolt as shown below.
- Before installing the anchor bolts, make sure there are no twists or kinks in the seat belt.

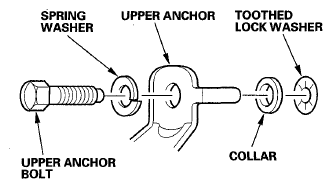

Upper anchor bolt installation

Fig 4: Identifying Upper Anchor Bolt Installation Positions
Courtesy of AMERICAN HONDA MOTOR CO., INC.
