Tailgate Weatherstrip Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate weatherstrip (A) by pulling out on it.

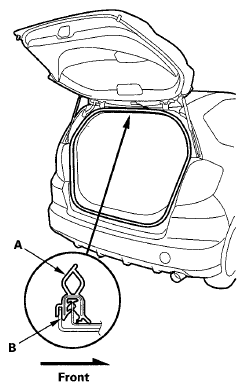

    Fig 1: Identifying Tailgate Weatherstrip & Painted Alignment Mark
    G05959688Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Locate the painted alignment mark (B) on the tailgate weatherstrip. Align the painted mark with the alignment tab in the center of the tailgate opening, and install the weatherstrip. Make sure it's seated completely and facing in the direction shown. Make sure there are no wrinkles in the weatherstrip.
  3. Check for water leaks (see step 8 on DOOR POSITION ADJUSTMENT ).
