Rear Seat-back Striker Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove these items:
- Rear door inner seal, as needed (see step 3 on TRIM REMOVAL/INSTALLATION - PILLAR AREAS )
- Tailgate weatherstrip, as needed (see INNER RECLINE COVER )
- Cargo floor (see step 1 on TRIM REMOVAL/INSTALLATION - CARGO AREA )
- Cargo floor box, with temporary repair kit (TRK) (see step 3 on TRIM REMOVAL/INSTALLATION - CARGO AREA )
- Rear trim panel (see step 4 on TRIM REMOVAL/INSTALLATION - CARGO AREA )
- Cargo area side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA )
Remove the bolts, then remove the rear seat-back striker (A).

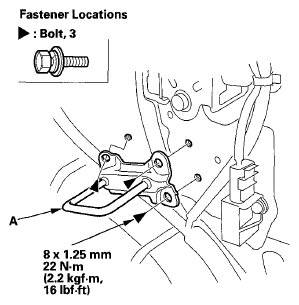

Fig 1: Rear Seat-Back Striker Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the striker in the reverse order of removal.
