Front Seat Active Head Restraint Inspection

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the vehicle has been in a collision, always inspect the active head restraint, even if they appear reusable, by doing the following procedure.

Fold the seat-backs forward, then recline the seat-back to the first lock position, and adjust the head restraint to the highest position.
Apply masking tape on the top of the head restraint.
Make marks (A) on both sides at 180 mm (7.09 in.) upward from the roots of the head restraint frame (B) along the back of the head restraint (C) surface. Mark the center of these points as a datum point (D).

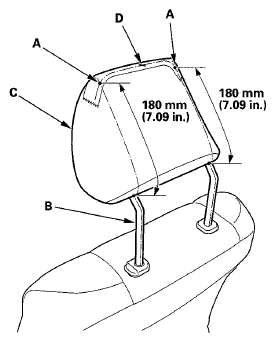

Fig 1: Placing Marks On Both Sides Of Head Restraint Frame & Back Of Head Restraint Surface
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Push the head restraint (A) forward, and measure the level amount of the head restraint movement. The head restraint should move more than 50 mm (2.0 in.) without resistance. If it is less than 50 mm (2.0 in.), or the head restraint doesn't move smoothly, replace the seat-back frame:
- See DRIVER'S SEAT
- See PASSENGER'S SEAT

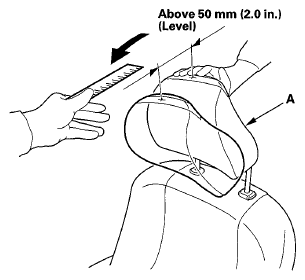

Fig 2: Measuring Level Amount Of Head Restraint Movement
Courtesy of AMERICAN HONDA MOTOR CO., INC.
