Door Position Adjustment
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Check for a flush fit with the body, then check for equal gaps between the front, rear, and bottom door edges and the body. Check that the door and body edges are parallel.
- Place the vehicle on a firm level surface when adjusting the doors.
- Adjust at the hinges (A):
- Pad a floor jack (B) with shop towels (C), then use the jack to support the door while adjusting it.
- On the front door: Remove the front inner fender (see FRONT INNER FENDER REPLACEMENT ). Loosen the hinge mounting bolts (D) slightly, and move the door backward or forward, up or down as necessary to equalize the gaps.
- On the rear door: Loosen the hinge mounting bolts (E) slightly, and move the door backward or forward, up or down as necessary to equalize the gaps.

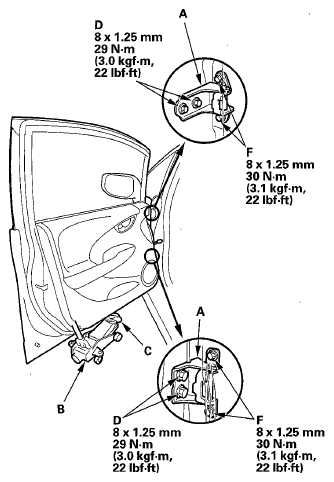

Front door
Fig 1: Hinges, Floor Jack, Shop Towels & Hinges Mounting Bolts (Front Door) With Torque SpecificationsCourtesy of AMERICAN HONDA MOTOR CO., INC.

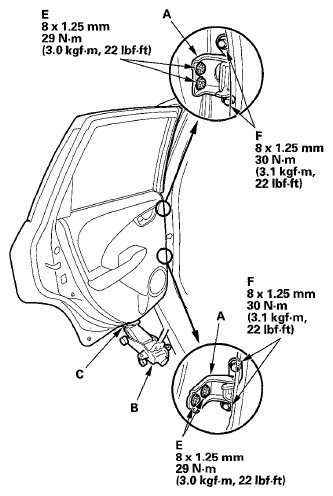

Rear door
- If necessary, replace the door mounting bolts with the adjusting bolts (P/N 90102-SFA-305) made specifically for door adjustment, then adjust at the door: Loosen the door mounting bolts (F) slightly, and move the door up or down as necessary to equalize the gaps, and move it in or out until it's flush with the body.

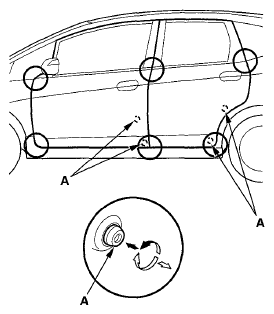

- Check that the door and body edges are parallel. If necessary, adjust the door cushions (A) to make the rear of the doors flush with the body.
- Make sure the door opens without popping or binding and latches securely without slamming. If not, adjust the striker (see DOOR STRIKER ADJUSTMENT ).
- Apply touch-up paint to the hinge mounting bolts, and around the hinges.
- Check for water leaks (see step 8).
