Tailgate Lock Cylinder Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

For Some Models

NOTE: Put on gloves to protect your hands.

Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Disconnect the tailgate cylinder rod (A).
NOTE: Check for damaged or stress-whitened rod fastener (B).

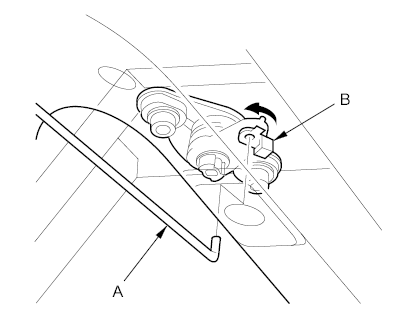

Fig 1: Identifying Tailgate Cylinder Rod & Stress Whitened Rod Fastener
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts securing the lock cylinder (A), then remove the lock cylinder by turning it.

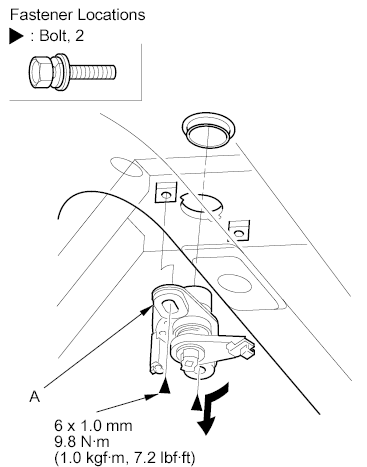

Fig 2: Lock Cylinder With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the lock cylinder in the reverse order of removal, and note these items:
- Make sure the cylinder rod is connected properly.
- Make sure the tailgate opens properly and locks securely.
