Trim Removal/Installation - Tailgate Area

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to bend or scratch the trim and panels.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the pull pocket (A).
1. Insert a flat-tip screwdriver (B) into the slot (C).
2. While levering the pocket down with the screwdriver, carefully push down on the hook (D) just below the mark (E) with another flat-tip screwdriver (F). Push down on the other hook (G) in the same way.
3. Pull the pocket back to detach the remaining hooks (H), then remove it.

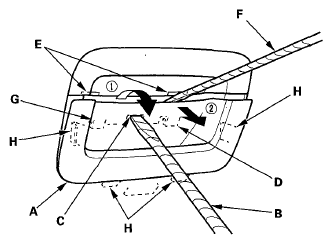

  Fig 1: Inserting Flat-Tip Screwdriver Into Slot
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull out the tailgate lower trim panel (A) by hand to detach the clips (B, C, D), then remove it.

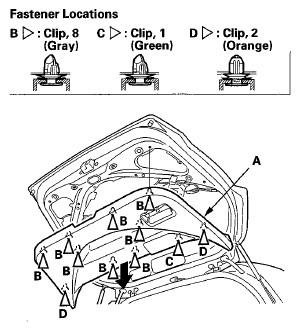

Fig 2: Identifying Tailgate Lower Trim Panel & Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
