Tailgate Handle Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the tailgate or the related parts.

Remove these items:
- Tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA )
- Rear license trim (see REAR LICENSE TRIM REPLACEMENT )
Disconnect the tailgate opener cable (A) from the tailgate handle (B), and remove the nuts. Take care not to kink the cable.

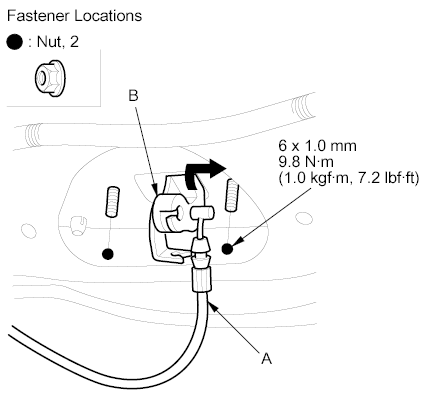

Fig 1: Tailgate Opener Cable & Handle With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
From outside of the tailgate, pull out the tailgate handle (A), then remove it.

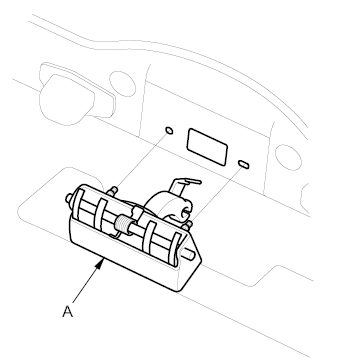

Fig 2: Identifying Tailgate Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the handle in reverse order of removal, and note these items:
- Make sure the tailgate opener cable is connected securely.
- Make sure the tailgate opens properly.
