Tailgate Dynamic Damper Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the tailgate or the related parts.

Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Remove the bolts, then remove the tailgate dynamic damper (A) from the tailgate.

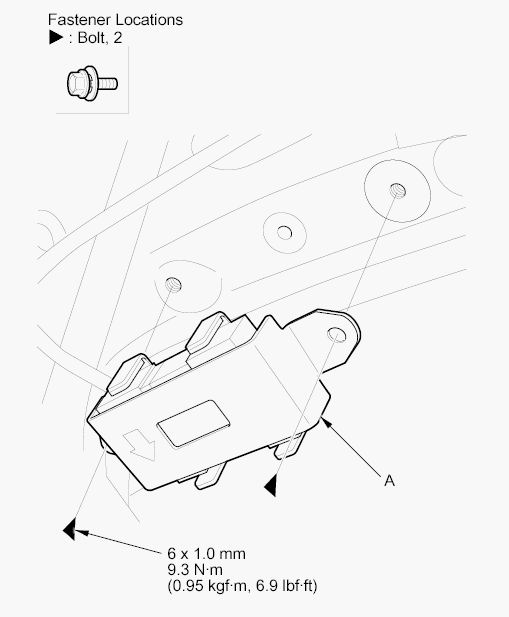

Fig 1: Tailgate Dynamic Damper And Fasteners With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the tailgate dynamic damper in the reverse order of removal.
