Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

KTC trim tool set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to bend or scratch the trim and panels.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Release the hooks (A), then pull up the cargo floor (B) and remove it.
Without Spare Tire

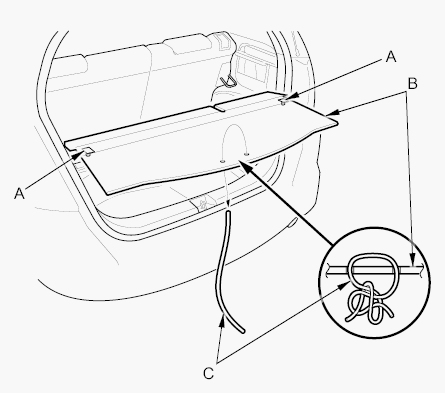

Fig 1: Identifying Hooks & Cargo Floor (Without Spare Tire)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

With Spare Tire

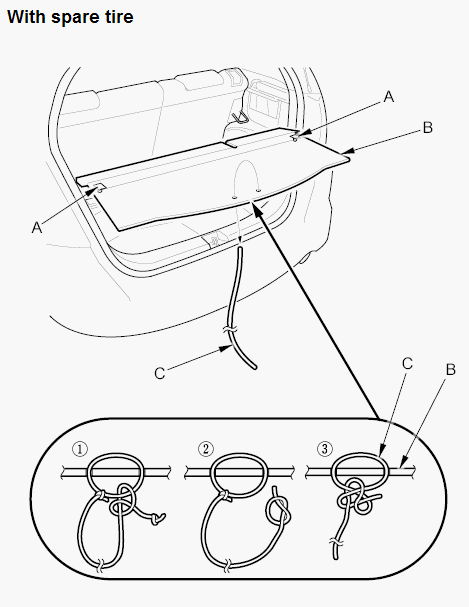

Fig 2: Identifying Hooks & Cargo Floor (With Spare Tire)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the bungee (C).
Remove the tailgate weatherstrip, as needed (see TAILGATE WEATHERSTRIP REPLACEMENT ).
With temporary repair kit (TRK): Remove the cargo floor box (A)

Fig 3: Identifying Cargo Floor Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rear trim panel (A).
1. Disengage the tabs (B) and hooks (C) on both sides from both cargo area side trim panel (D).
2. Detach the clips by pulling the panel up.

  Fig 4: Identifying Rear Trim Panel
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips, the hooks, and the tabs into place securely.
