Rear Window: Removal/Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear window wiper arm (see WIPER ARM REPLACEMENT  ).
  2. Open the tailgate, and remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  3. Disconnect the 4P connector (A) from the rear window wiper motor (B).

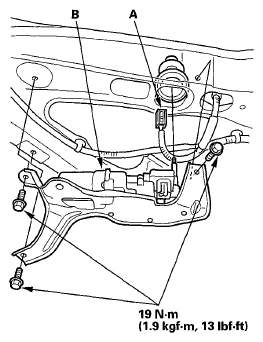

    Fig 1: Rear Window Wiper Motor & 4P Connector With Torque Specifications
    G05960108Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the three bolts and the rear window wiper motor.
  5. Install in the reverse order of removal, and note these items:
    • Grease the moving parts.
    • Before reinstalling the wiper arm, turn the rear window wiper switch ON, then OFF to return the wiper shaft to the park position.
    • Check the wiper motor operation.
