Washer Reservoir Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector (A) and tubes (B) from the washer motor (C) and the washer fluid level switch (Canada models).

    Washer Reservoir Capacity:

    2.5 L (2.64 US qt): USA models

    4.5 L (4.75 US qt): Canada models

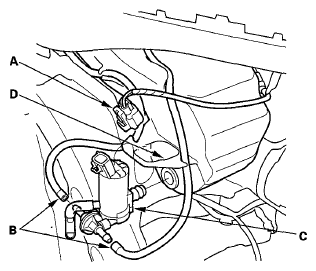

    Fig 1: Identifying Washer Motor & 2P Connector
    G05960111Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the washer motor (C) from the washer reservoir (D).
  4. Remove the bolts (A) and clips (B), then remove the washer reservoir (C).

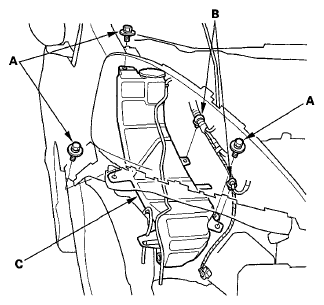

    Fig 2: Identifying Washer Reservoir With Clips & Bolts
    G05960112Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the washer reservoir in the reverse order of removal. Check the washer motor operation.
