Passenger's Dashboard Undercover Removal/Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the dashboard or its related parts.

Remove the passenger's dashboard undercover (A).
1. Gently pull down the front edge to detach the clips (B, C).
2. Pull the cover away to release the pins (D).

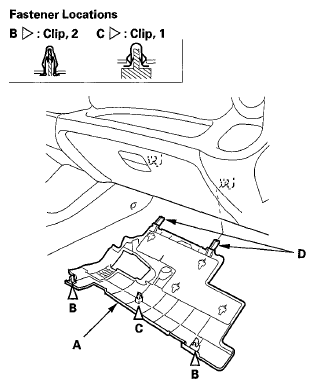

  Fig 1: Identifying Passenger's Dashboard Undercover
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the pins into place securely.
