Left Engine Compartment Wire Harness (Engine Compartment Branch)
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Left Engine Compartment Wire Harness (Engine compartment branch)

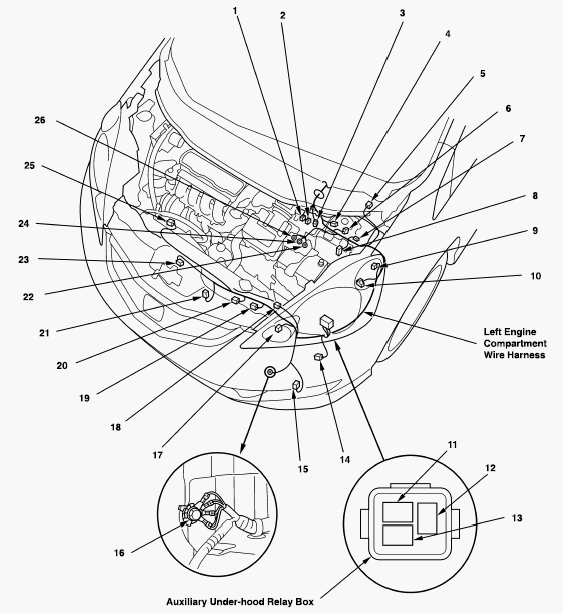

LEFT ENGINE COMPARTMENT WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes | ||||
|---|---|---|---|---|---|---|---|---|---|
| A/C compressor clutch relay | 12 | 4 | Left side of engine compartment | In the auxiliary under-hood relay box | With A/C | ||||
| A/C condenser fan motor | 26 | 2 | Front of engine compartment | - | With A/C | ||||
| A/C condenser fan relay | 11 | 4 | Left side of engine compartment | In the auxiliary under-hood relay box | With A/C | ||||
| Brake fluid level switch | 6 | 2 | Left side of engine compartment | - | - | ||||
| EPS motor | 3 | 3 | Left side of engine compartment | - | - | ||||
| ECM connector A | 8 | 49 | Left side of engine compartment | - | M/T | ||||
| Hood switch | 23 | 2 | Front of engine compartment | - | Security | ||||
| Horn | 21 | 1 | Front of engine compartment | - | (1) | ||||
| Horn | 24 | 1 | Front of engine compartment | - | (2) | ||||
| Left fog light | 15 | 2 | Behind left side of front bumper | - | - | ||||
| Left front impact sensor | 20 | 2 | Behind left side of front grille | - | - | ||||
| Left front wheel speed sensor | 4 | 2 | Left side of engine compartment | - | - | ||||
| Left front parking/side marker light | 17 | 2 | Behind left headlight | - | - | ||||
| Left front turn signal light | 9 | 2 | Behind left headlight | - | - | ||||
| Left headlight | 10 | 3 | Behind left headlight | - | - | ||||
| Motor angle sensor | 1 | 8 | Left side of engine compartment | - | - | ||||
| Optional connector (for engine starter) | 18 | 2 | Left front of engine compartment | - | - | ||||
| PCM connector A | 8 | 49 | Left side of engine compartment | - | A/T | ||||
| Radiator fan motor | 19 | 2 | Front of engine compartment | - | - | ||||
| Radiator fan relay | 13 | 4 | Left side of engine compartment | In the auxiliary under-hood relay box | - | ||||
| Security horn | 14 | 1 | Left side of engine compartment | - | Security | ||||
| Torque sensor | 2 | 6 | Left side of engine compartment | - | - | ||||
| Windshield wiper motor | 5 | 5 | Left side of engine compartment | - | - | ||||
| C101 | 7 | 13 | Left side of engine compartment | Engine wire harness M/T: (see ENGINE WIRE HARNESS (M/T) ) A/T: (see ENGINE WIRE HARNESS (A/T) (ENGINE SECTION) ) |
- | ||||
| T3 | 27 | - | On the battery | Battery terminal fuse box (see BATTERY TERMINAL FUSE BOX ) | - | ||||
| T4 | 25 | - | On the battery | Battery terminal fuse box (see BATTERY TERMINAL FUSE BOX ) | - | ||||
| T5 | 22 | - | On the battery | Battery terminal fuse box (see BATTERY TERMINAL FUSE BOX ) | - | ||||
| G301 | 16 | - | Under left side of dash | Body ground, via left engine compartment wire harness | - | ||||
|
|||||||||
