Engine Wire Harness (A/T) (Engine section)
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Engine Wire Harness (A/T) (Engine section)

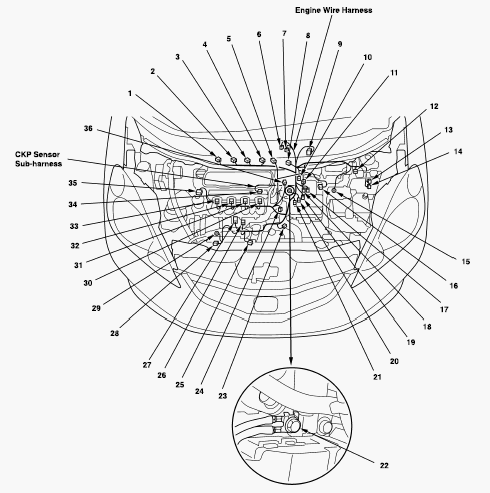

ENGINE WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes | ||
|---|---|---|---|---|---|---|---|
| Air fuel ratio (A/F) sensor | 6 | 4 | Exhaust manifold | - | - | ||
| Alternator | 27 | 4 | Middle of engine compartment | - | - | ||
| Camshaft position (CMP) sensor | 10 | 3 | Middle of engine compartment | - | - | ||
| EGR valve/position sensor | 34 | 5 | Middle of engine compartment | - | - | ||
| Engine coolant temperature (ECT) sensor 1 | 8 | 2 | Middle of engine compartment | - | - | ||
| EVAP canister purge valve | 35 | 2 | Middle of engine compartment | - | - | ||
| Ignition coil No. 1 | 1 | 2 | Middle of engine compartment | - | - | ||
| Ignition coil No. 2 | 2 | 2 | Middle of engine compartment | - | - | ||
| Ignition coil No. 3 | 3 | 2 | Middle of engine compartment | - | - | ||
| Ignition coil No. 4 | 4 | 2 | Middle of engine compartment | - | - | ||
| Injector No. 1 | 32 | 3 | Middle of engine compartment | - | - | ||
| Injector No. 2 | 31 | 3 | Middle of engine compartment | - | - | ||
| Injector No. 3 | 30 | 3 | Middle of engine compartment | - | - | ||
| Injector No. 4 | 29 | 3 | Middle of engine compartment | - | - | ||
| Knock sensor | 26 | 1 | Front of engine | - | - | ||
| Manifold absolute pressure (MAP) sensor | 5 | 3 | Middle of engine compartment | - | - | ||
| Mass air flow (MAF) sensor/Intake air temperature (IAT) sensor | 16 | 5 | Middle of engine compartment | - | - | ||
| Oil pressure switch | 25 | 1 | Front of engine | - | - | ||
| PCM connector B | 13 | 49 | Left side of engine compartment | - | - | ||
| PCM connector C | 14 | 49 | Left side of engine compartment | - | - | ||
| Rocker arm oil control solenoid | 23 | 2 | Middle of engine compartment | - | - | ||
| Secondary HO2S | 7 | 4 | Exhaust manifold | - | - | ||
| Starter solenoid | 24 | 1 | Front of engine | - | - | ||
| Throttle position sensor/Throttle actuator | 9 | 6 | Middle of engine compartment | - | - | ||
| Rocker arm oil pressure switch | 22 | 2 | Middle of engine compartment | - | - | ||
| C101 | 12 | 13 | Left side of engine compartment | Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | - | ||
| C102 | 11 | 3 | Middle of engine compartment | CKP sensor subharness | - | ||
| C103 (Junction connector) | 19 | 24 | Middle of engine compartment | - | - | ||
| C104 (Junction connector) | 20 | 24 | Middle of engine compartment | - | - | ||
| S1 (Terminal joint) | 17 | - | Middle of engine compartment | - | - | ||
| S2 (Terminal joint) | 18 | - | Middle of engine compartment | - | - | ||
| S2 (Terminal joint) | 19 | - | Middle of engine compartment | - | (1) | ||
| T2 | 15 | - | Left side of engine compartment | Battery terminal fuse box (see BATTERY TERMINAL FUSE BOX ) | - | ||
| T101 | 28 | - | Middle of engine compartment | Alternator +B terminal | - | ||
| G101 | 21 | - | Middle of engine compartment | Body ground, via engine wire harness | - | ||
|
|||||||
