Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Driver handle 07749-0010000
Oil seal driver attachment, 96 mm 07ZAD-PNAA100

Remove the transmission:
- Manual transmission (see TRANSMISSION REMOVAL )
- Automatic transmission (see TRANSMISSION REMOVAL )
M/T model: Remove the pressure plate (see step 3 on CLUTCH REPLACEMENT ), clutch disc (see step 8 on ENGINE SIDE ), and flywheel (see step 16 on ENGINE SIDE ).
A/T model: Remove the drive plate (see DRIVE PLATE REMOVAL AND INSTALLATION ).
Clean and dry the crankshaft oil seal housing.
Apply a light coat of new engine oil to the lip of the crankshaft oil seal.

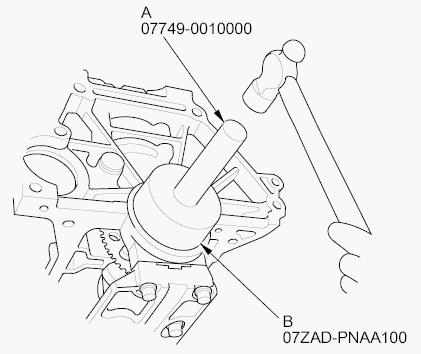

Using the driver handle, 15 x 135 L (A), and the oil seal driver attachment, 96 mm (B), to drive a new crankshaft oil seal squarely into the engine block to the specified installed height.

Fig 1: Driving Oil Seal Into Block
Courtesy of AMERICAN HONDA MOTOR CO., INC.

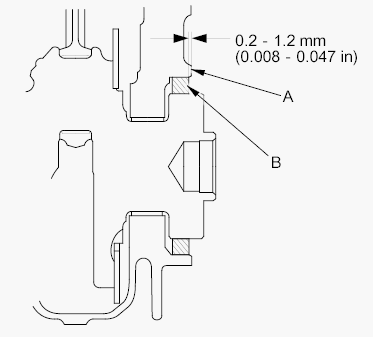

Measure the distance between the cylinder block (A) and the crankshaft oil seal (B).
Oil Seal Installed Height: 0.2-1.2 mm (0.008-0.047 in)

Fig 2: Identifying Distance Between Crankshaft & Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
M/T model: Install the flywheel (see step 19 on ENGINE SIDE ), clutch disc (see step 25 on ENGINE SIDE ), and pressure plate (see step 28 on ENGINE SIDE ).
A/T model: Install the drive plate (see DRIVE PLATE REMOVAL AND INSTALLATION ).
Install the transmission:
- Manual transmission (see TRANSMISSION INSTALLATION )
- Automatic transmission (see TRANSMISSION INSTALLATION )
