Drive Plate Removal and Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly (see SPECIAL TOOLS REQUIRED ).
  2. Remove the drive plate (A) and the washer (B) from the engine crankshaft.

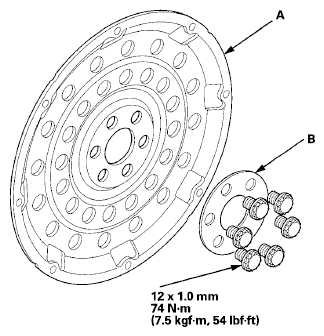

    Fig 1: Removing Drive Plate And Washer From Engine Crankshaft With Torque Specifications
    G06768493Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the drive plate and the washer on the engine crankshaft, and tighten the six bolts in a crisscross pattern in at least two steps.
  4. Install the transmission assembly (see DRIVE PLATE REMOVAL AND INSTALLATION ).
