DTC 62-2x: ("X" Can Be 0 Thru 9 Or A Thru F) Short In the Front Passenger's Seat Belt Buckle Switch
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components, of the correct part number, and that they were properly installed. (See COMPONENT REPLACEMENT/INSPECTION AFTER DEPLOYMENT ).
- Before doing this troubleshooting procedure, review SRS PRECAUTIONS AND PROCEDURES and General Troubleshooting Information (see DTC (DIAGNOSTIC TROUBLE CODES) ).
- Clear the DTCs with the HDS (see CLEAR THE DTC MEMORY ).
- Turn the ignition switch to LOCK (0), then wait for 10 seconds.
- Turn the ignition switch to ON (II), then buckle and unbuckle the front passenger's seat belt several times.
- Check for the DTCs with the HDS (see READING THE DTC
).
Is DTC 62-2x indicated?
YES - Go to step 5.
NO - Intermittent failure, the system is OK at this time. Go to TROUBLESHOOTING INTERMITTENT FAILURES . If another DTC is indicated, troubleshoot the DTC.
- Turn the ignition switch to LOCK (0).

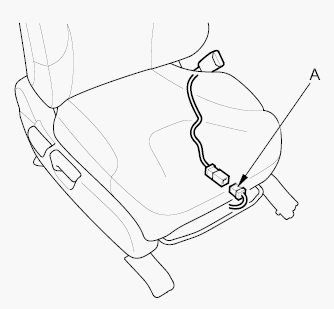

- Disconnect the front passenger's seat belt buckle switch 2P connector (A) on the floor wire harness.
- Clear the DTCs with the HDS (see CLEAR THE DTC MEMORY ).
- Turn the ignition switch to ON (II), then wait for 10 seconds.
- Check for the DTCs with the HDS (see READING THE DTC
).
Is DTC 62-2x indicated?
YES - Short to ground in the floor wire harness; replace the floor wire harness, then clear the DTC.
NO - Faulty front passenger's seat belt buckle switch; replace the front passenger's seat belt buckle assembly (see FRONT SEAT BELT BUCKLE ), then clear the DTC.
