Starter Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the coolant reservoir.

Fig 1: Identifying Coolant Reservoir & Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake manifold (see REMOVAL ).
Remove the dipstick, then remove the dipstick tube (A).

Fig 2: Identifying Dipstick Tube & Oil Pressure Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the oil pressure switch connector (B).
Disconnect the starter cable (A) from the B terminal and disconnect the connector (B) from the S terminal.

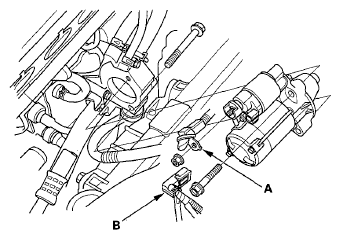

Fig 3: Identifying Starter Cable & Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two bolts securing the starter, then remove the starter from under the vehicle.
