Intake Manifold Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the harness holder (A) and the dipstick (B).

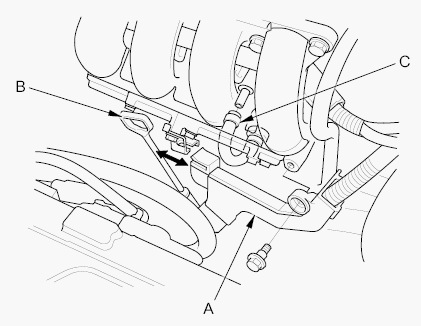

Fig 1: Identifying Harness Holder & Positive Crankcase Ventilation (PCV) Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the PCV hose (C).
Disconnect the EGR valve connector.
Remove the intake manifold (A).

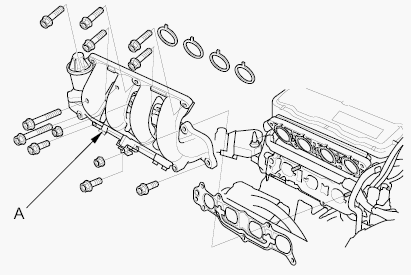

Fig 2: Identifying Intake Manifold & Dipstick
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disassemble the intake manifold.

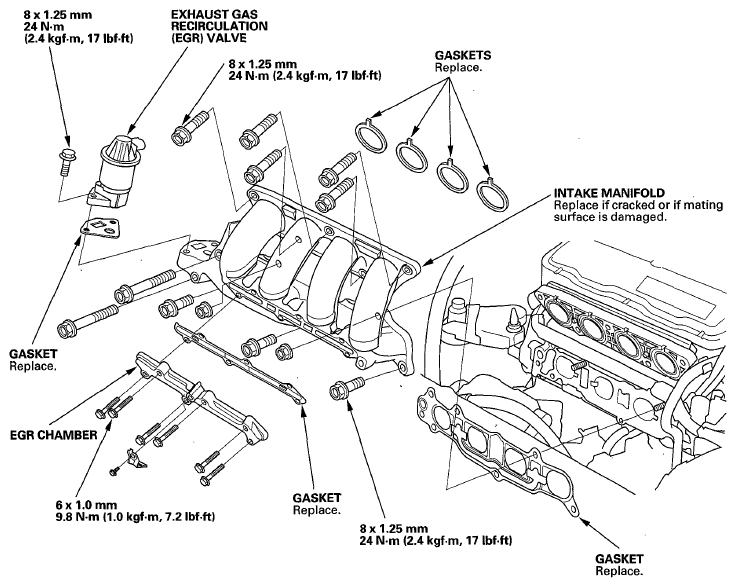

NOTE: Refer to the Exploded View if needed during this procedure (see Figure).
