Starter Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Install the starter to the engine. Connect the starter cable (A) and connector (B). Make sure the crimped side of the starter cable terminal faces away from the starter when you connect it.

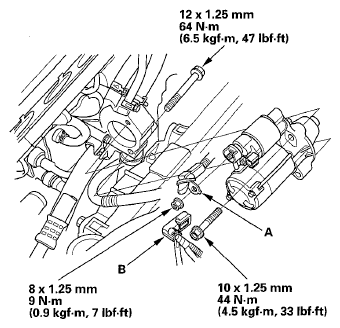

Fig 1: Starter Cable & Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the dipstick tube (A) with a new O-ring (B).

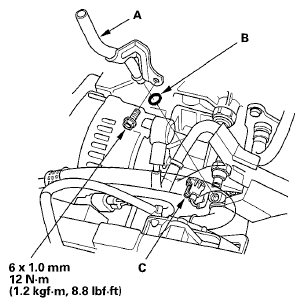

Fig 2: Dipstick Tube, Oil Pressure Switch Connector & O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the oil pressure switch connector (C).
Install the coolant reservoir.

Fig 3: Coolant Reservoir & Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the intake manifold (see INSTALLATION ).
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Start the engine to make sure the starter works properly.
