Intake Manifold Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reassemble the intake manifold.
    NOTE: Refer to the Exploded View if needed during this procedure (see Figure).
  2. Install the intake manifold (A) with new gaskets (B).

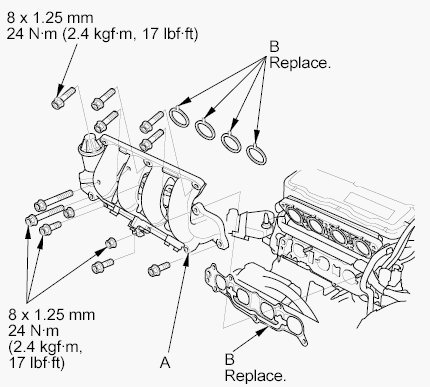

    Fig 1: Identifying Intake Manifold & Gaskets
    G05952694Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the dipstick.
  4. Connect the EGR valve connector.
  5. Install the PCV hose (A).
    Fig 2: Identifying PCV Hose & Harness Holder
    G05952695Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the harness holder (B) and the dipstick (C).
