Camshaft Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner housing assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Remove the intake manifold chamber (see REMOVAL ).
  3. Remove the following engine wire harness connectors and wire harness clamps from the cylinder head:
    • Four injector connectors
    • Engine coolant temperature (ECT) sensor 1 connector
    • Camshaft position (CMP) sensor connector
    • Air fuel ratio (A/F) sensor connector
    • Secondary heated oxygen sensor (secondary HO2S) connector
  4. Remove the harness holder mounting bolt and the ground cable, then remove the harness holder from the bracket (see step  12 ).
  5. Remove the camshaft sprocket (see CAMSHAFT SPROCKET REMOVAL  ).
  6. Remove the rocker arm assembly (see ROCKER ARM ASSEMBLY REMOVAL  ).
  7. Remove the CMP sensor (see CMP SENSOR REPLACEMENT ).

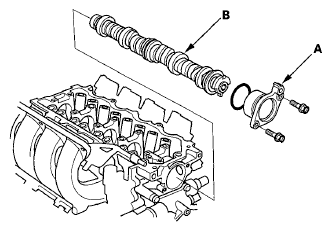

  8. Remove the camshaft thrust cover (A), then remove the camshaft (B).
    Fig 1: Identifying Camshaft Thrust Cover & Camshaft
    G05952537Courtesy of AMERICAN HONDA MOTOR CO., INC.
