Camshaft Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Install the camshaft (A).
NOTE: Apply new engine oil to the journals and the cam lobes.

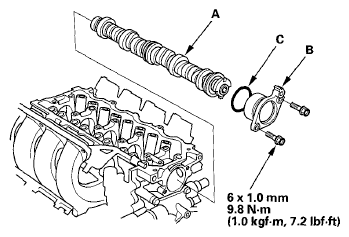

Fig 1: Identifying Camshaft, Camshaft Thrust Cover & O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the CMP pulse plate (see INSTALLATION ).
Install the camshaft position (CMP) sensor (see CMP SENSOR REPLACEMENT ).
Install the rocker arm assembly (see ROCKER ARM ASSEMBLY INSTALLATION ).
Install the camshaft sprocket (see CAMSHAFT SPROCKET INSTALLATION ).
