Rocker Arm Assembly Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

If the rocker arm assembly is disassembled, reassemble the rocker arm assembly. (See ROCKER ARM AND SHAFT DISASSEMBLY/REASSEMBLY ). Refer to Figure.
Apply engine oil to the end of the valve stem.
Install the rocker arm assembly.

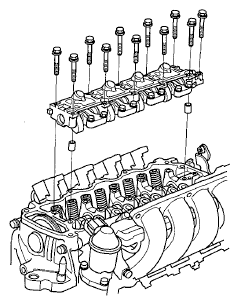

Fig 1: Identifying Rocker Arm Assembly And Fasteners
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten each bolts two turns at a time in the sequence shown below.
Specified Torque

6 x 1.0 mm

(1)-(10): 15 N.m (1.5 kgf.m, 11 lbf.ft)

(11): 9.8 N.m (1.0 kgf.m, 7.2 lbf.ft)

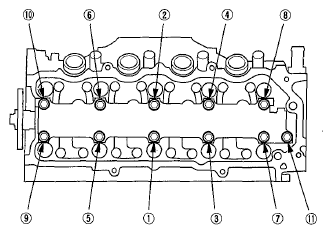

Fig 2: Identifying Rocker Arm Assembly Bolts Tightening Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Adjust the valve clearance (see VALVE CLEARANCE ADJUSTMENT ).
Install the cylinder head cover (see CYLINDER HEAD COVER INSTALLATION ).
