Tensioner Pulley Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the auto-tensioner (see DRIVE BELT AUTO-TENSIONER REMOVAL/INSTALLATION  ).
  2. Remove the tensioner pulley.

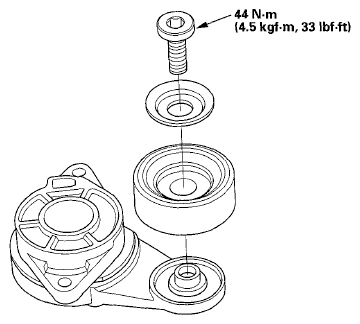

    Fig 1: Tensioner Pulley With Torque Specifications
    G05952316Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the auto-tensioner in the reverse order of removal.
