Alternator Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the drive belt (see DRIVE BELT REMOVAL/INSTALLATION ).
Remove the intake manifold (see REMOVAL ).
Disconnect the alternator connector (A) and BLK wire (B), then remove the harness clamp (C) from the alternator.

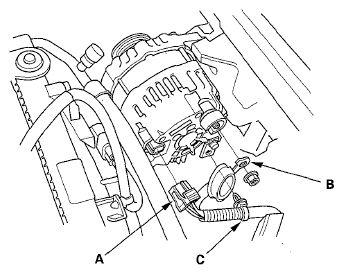

Fig 1: Identifying Alternator Connector, BLK Wire & Harness Clamp
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the alternator.

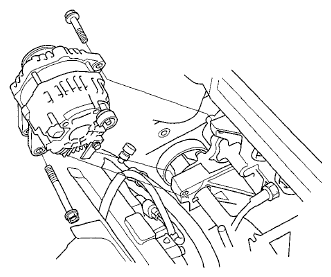

Fig 2: Identifying Alternator & Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
