CMBS OFF Switch Test/Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument fascia (see DRIVER'S INNER DASHBOARD TRIM REMOVAL/INSTALLATION ).
Remove the screws and the CMBS OFF switch (A).

Fig 1: Identifying CMBS Off Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

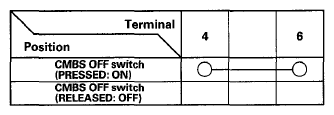

Check for continuity between the 6P connector terminals in each switch position according to the table.

Fig 2: Identifying 6P Connector And Switch Positon In Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying CMBS Off Switch 6P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the CMBS OFF switch.
Use a diode tester between the 6P connector terminals in each switch position according to the table.
If the diode test is not as specified, install the CMBS OFF switch in the reverse order of removal.
